Tpo Waterproofing Systems

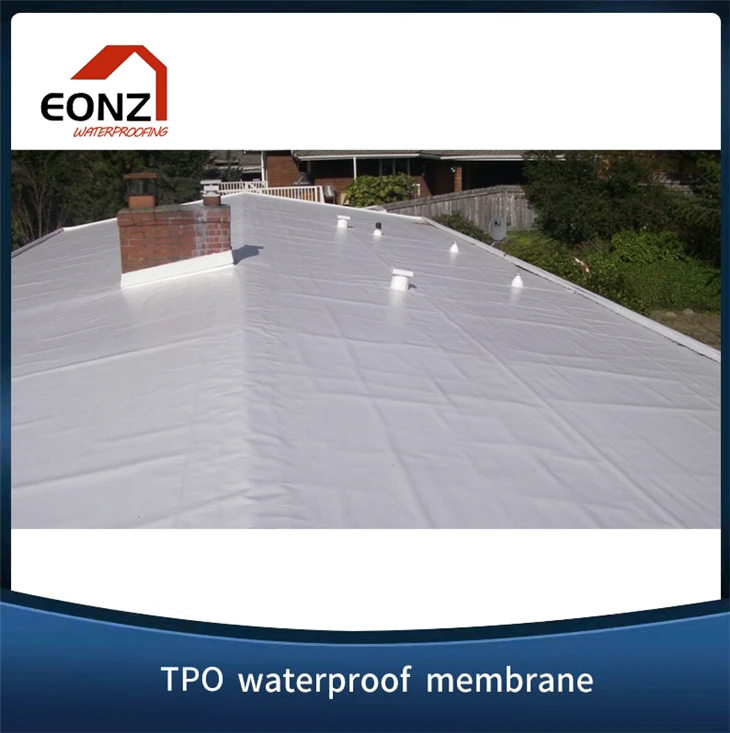

TPO waterproofing is a type of membrane designed to prevent water from penetrating into structures such as tunnels, foundations, and roofs. It is made primarily from thermoplastic olefin sheets, combined with a self-adhesive and a surface anti-stick protective layer. The overlap area is isolated using isolation materials where necessary, and the TPO membrane is bonded to the concrete by means of pre-laying. The edges of the overlap are welded together using hot air without the need for additional layers or protection layers. The material itself is relatively soft, making it easy to work with during corner construction, resulting in lower levels of leakage and seepage. Due to its properties, TPO waterproofing is a popular choice for tunnel waterproofing projects.

Send Inquiry

Fast Delievery
Quality Assurance
24/7 Customer Service

Product Introduction

Specification

Product Name	Type	Thickness	Roll size
TPO waterproof membrane 60 mil	homogeneous, reinforced adhesive, fiber back	1.2mm-2.0mm 60 mil-1.5mm 40mil-1.2mm	1-2m width 20-30m length or customer made

TPO waterproofing coil benefits:

Adaptability to environment

Environmental flexibility is the first significant benefit of tpo. We are all aware of the role that waterproof materials play. However, in reality, waterproof materials alone won't suffice because they must withstand a variety of adverse weather conditions, including prolonged exposure to light, frequent high and low temperature swings, strong winds, dust storms, and other inclement weather. When compared to conventional materials, po material incorporates ethylene propylene rubber, which is highly adaptable to various weather conditions and efficiently prevents chemical erosion to guarantee consistent waterproof performance.

2 4

In real life, sometimes we have to take certain areas, certain industries or certain products seriously because they involve decades, centuries or even thousands of years of property safety, personal safety and environmental safety. For example, waterproof project, it is a very important part of the construction project, directly related to the moisture, heat, fire and other functions of houses and buildings, involving the life and property safety of occupants and the protection and utilization of social resources.

TPO waterproofing systems, also known as thermoplastic polyolefin, is a type of synthetic material used for waterproofing in various construction projects. It is a highly durable, environment-friendly, and reliable waterproofing solution that offers exceptional performance even in extreme weather conditions. With its unique properties, TPO waterproofing systems has become a popular choice among architects, engineers, contractors, and property owners worldwide.

TPO waterproofing systems boasts superior strength, flexibility, and heat resistance compared to traditional waterproofing solutions. It is made of a blend of rubber and plastic, reinforced with polyester or fiberglass, and has a thickness ranging from 0.45mm to 2.0mm. This membrane is capable of withstanding temperature changes, UV exposure, and chemicals, making it ideal for flat roofs, underground structures, and exterior walls.

One of the most significant advantages of TPO waterproofing systems is its environmental friendliness. It is manufactured through a process that emits low levels of volatile organic compounds (VOCs), making it an eco-friendly choice for sustainable building practices. Additionally, it is recyclable and can be reprocessed into other products, reducing waste and promoting a circular economy.

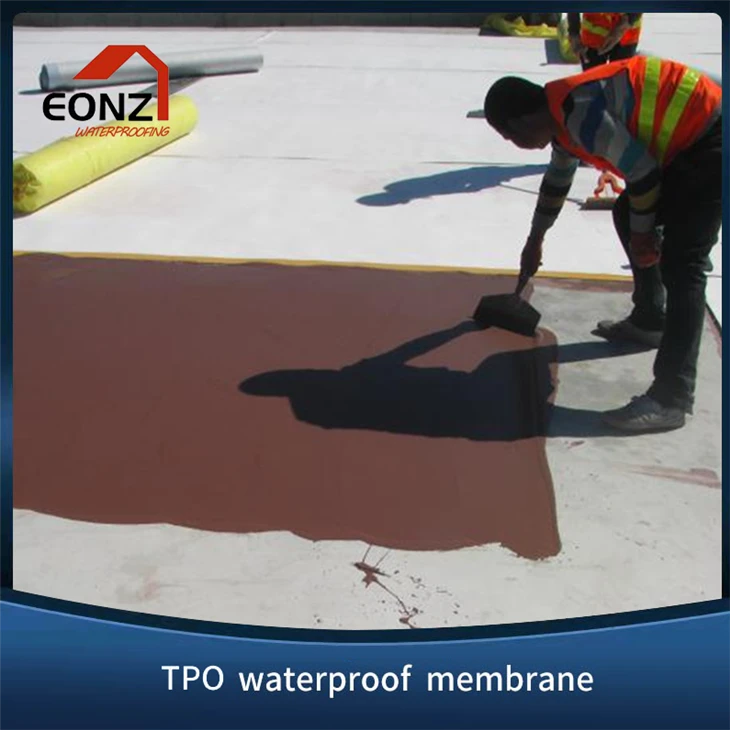

Another benefit of TPO waterproofing systems is how simple it is to install and maintain. Usually, adhesive bonding or hot air welding are used for installation, both of which are quite simple processes. It's an affordable, low-maintenance alternative that needs little cleaning, inspections, or repairs once installed.

In conclusion, TPO waterproofing systems is a high-performance, eco-friendly, and cost-effective solution for waterproofing. It offers superior strength, flexibility, and heat resistance, making it ideal for a wide range of applications in the construction industry. Its ease of installation, low maintenance requirements, and recyclability make it an excellent choice for sustainable building practices. With its exceptional properties, TPO waterproofing systems is sure to become an even more popular choice among construction professionals around the world.

Physicality in mechanics
The mechanical physicality of tpo waterproof material is its second key benefit. The mechanical and physical characteristics of materials that are waterproof are particularly crucial since these materials must withstand various environmental changes in addition to human weight, physical and mechanical strain, and other stresses. The po material contains a coarse poly fiber that has been sandwiched in the middle, which improves its mechanical and physical qualities and significantly increases its resistance to stretching, puncture, and pressure. The traditional material has a single composition and incomplete mechanical and physical properties.

Recurrent flexibility

The third major advantage of tpo waterproof material is repeated plasticity. Asphalt and other traditional waterproofing materials have a limited lifespan and cannot be reused. The surface's suppleness will gradually deteriorate over time, leading it to appear dry and eventually needing replacement. Tpo materials contain polypropylene and other components, and they have excellent repeatable plasticity and the ability to retain their softness even after cutting.

technology data sheet

1	Tensile strength	maximum tension, N/cm	Longitudina	≥250	360
		maximum tension, N/cm	Transverse	≥250	310
		Elongation %	Longitudina	≥15	18
		Elongation %	Transverse	≥15	22
2	Dimension variance rate (heat treatment) %		Longitudina	≤0.5	0.15
2	Dimension variance rate (heat treatment) %		Transverse	≤0.5	0.1
3	Bending at low temperature		-	-40℃, no leakage	Pass
4	Water Impermeability		-	0.3Mpa, 2h, impervious	Pass
5	Shock resistance		-	0.5kg·m, no leakage	Pass
6	Peel strength of jointing		N/mm	≥3.0	6.3
7	Static Load Resistance		-	20kg no leakage	Pass
8	Trapezoid tearing strength N	Longitudinal	N	≥450	655
8	Trapezoid tearing strength N	Transverse	N	≥450	525
9	Water absorption (70℃, 168h)		%	≤4.0	2.2
