Established in 2006, EONZEAL waterproof was dedicated to construction waterproofing filed, With more than 20 years of exporting experience of waterproofing materials, Eonzeal products have been exported to more than 30 countries such as Canada, South Africa, Pakistan, India, Malaysia, Indonesia, Vietnam, Myanmar, Philippines, Chile, USA, Ecuador, Peru, Poland, Greece etc.
The annual output of asphalt waterproof Membrane reaches 80 million square meters
The annual output of polymer waterproof Membrane reaches 20 million square meters
The production capacity of waterproof coatings for construction reached 30,000 tons

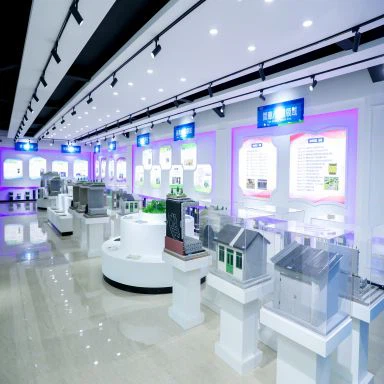

The technology research and development center covers an area of more than 2000 square meters

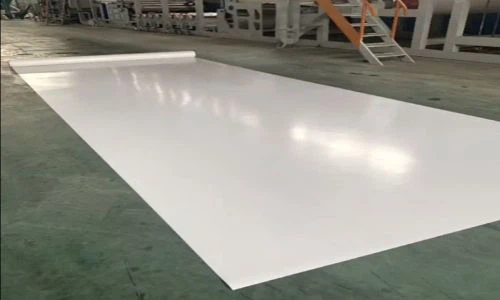

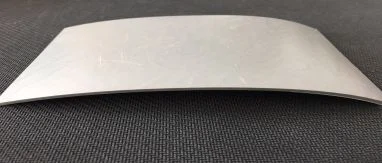

PVC waterproofing membrane, also known as Polyester Reinforced Polyvinyl Chloride (PVC) Waterproofing Membrane, is a thermoplastic PVC roll. This membrane is made of a polymer membrane reinforced with polyester fabric using a special extrusion coating process, with both sides coated with PVC plastic and the middle reinforced with polyester fabric. This membrane has good dimensional stability and a low coefficient of thermal expansion.
Without proper waterproofing, water can easily penetrate through the walls, ceilings, and floors, leading to serious structural damage, mold growth, and health hazards. That's why builders and engineers rely on high-quality waterproofing membranes to protect their buildings from water damage.
One of the most popular and effective waterproofing materials is the PVC waterproof membrane.
advantages of pVC waterproof membrane
Choose the plan that suits you best.
Excellent Water Resistance
They can withstand both static and dynamic water pressure without allowing any water to penetrate through.
Good low temperature resistance
It has a low temperature bending test report of -40℃, which is much higher than the standard of -25℃ required by the national standard.
Fire Resistance
They also produce very little smoke and toxic fumes, making them safe for use in both commercial and residential buildings.
Convenient detail handling
The PVC waterproof membrane material is soft, the details are more convenient, and it is more suitable for the roofing system with more nodes and complex structure.
-
![PVC Membrane Flat Roof]()
Add to Inquiry -
![Planter Waterproofing Membrane]()
Planter Waterproofing Membrane
Add to Inquiry -
![Pvc Waterproofing System]()
Add to Inquiry -
![Pvc Waterproofing]()
Add to Inquiry -
![Pvc Sheet For Waterproofing]()
Add to Inquiry -
![Waterproof Slab]()
Add to Inquiry -
![Anti Root Membrane]()
Add to Inquiry -
![Waterproof Membrane For Roof]()
Add to Inquiry -
![Waterproof Deck Membrane]()
Add to Inquiry -
![Waterproofing Layer]()
Add to Inquiry -
![Flat Roof Waterproofing Membrane]()
Flat Roof Waterproofing Membrane
Add to Inquiry -
![Waterproof Breathable Membrane]()
Waterproof Breathable Membrane
Add to Inquiry
Construction method
Basic treatment
The base should be solid, smooth, clean and dry; Fine stone concrete or cement mortar base should not be loose, cracking, hollow and other phenomena.
Elasticity, test shop
The distance between the second line and the first line is the width of the membrane. Then the distance between each reference line and the previous reference line is positioned according to the reserved lap width.

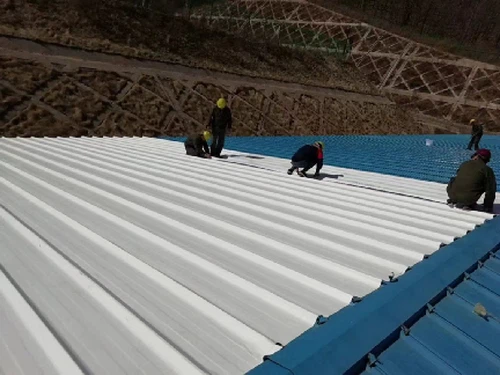

Lay the membrane
Lay the membrane on the base layer. When laying the adjacent membrane, be careful to align with the lap edge to avoid deviation affecting the lap.

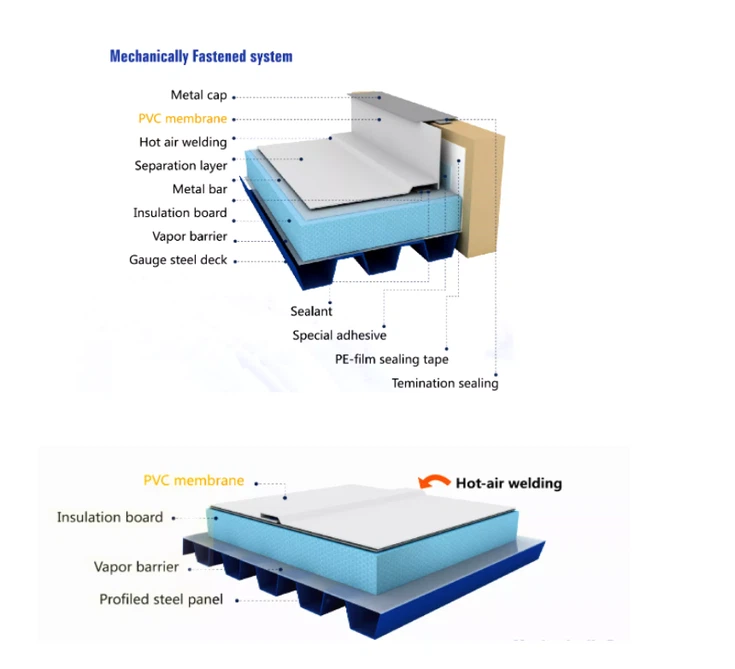

Mechanical fixation
The number and spacing of fixed parts should meet the design requirements; When the structural layer is concrete, holes should be drilled on the concrete structural layer and waterproof membrane should be fixed.
When the structure layer is the insulation layer; The fixed parts should be fixed on the crest of the pressed steel plate, and should be perpendicular to the roof plate, and tightly combined with the waterproof membrane; In the closing and opening parts, when the firmware can not be set on the crest, the edge strengthening steel plate should be added, and the fixed parts should be fixed on the strengthening steel plate.
Membrane lap
The large area is welded by hot air of the crawling machine, and the joint part is manually welded by hot air gun. The single seam welding is 60mm, and the double seam welding is 80mm.
Finished product protection
During the construction of the waterproof layer, it is strictly prohibited to wear shoes with iron nails or iron palms to enter the site to avoid damaging the waterproof layer. When waterproofing construction personnel and materials enter, they must abide by the principle of handling with care. It is strictly forbidden to hit the waterproof layer of the membrane with sharp objects.
After the construction of the waterproof layer is completed, no holes or drilling can be made on the waterproof layer to install machinery and equipment. If it is necessary to make holes or drill holes in the waterproof layer, records should be made first and repairs should be arranged. During the construction process, if the waterproof layer is found to be damaged, repairs should be organized as soon as possible.
During the entire construction period of the waterproof layer, the waterproof construction unit should send dedicated personnel to supervise the entire process. If any operation that damages the waterproof layer is found, it should be stopped in time. At the same time, the damaged waterproof layer should be repaired in a timely and effective manner.

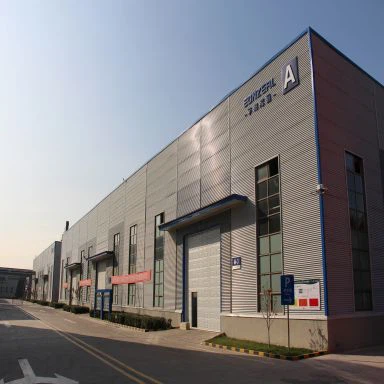

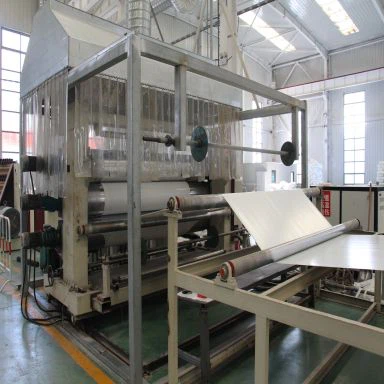

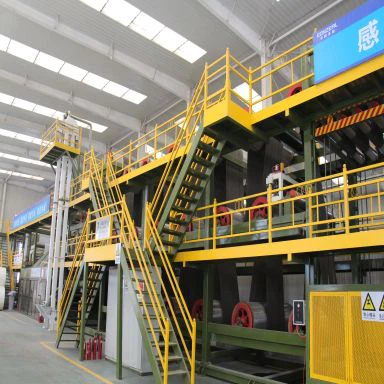

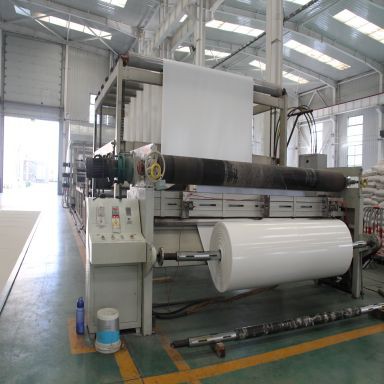

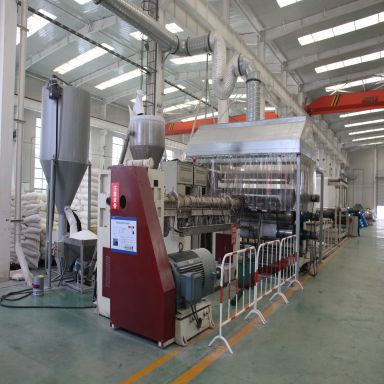

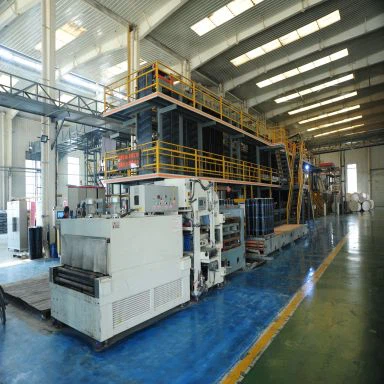

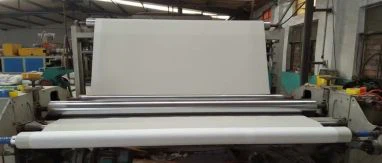

Our Factory
FAQ
Q: Do we use recycle raw materials?
Q: What are the functions of the sand?
Q: Can the product be customized?
Q: What is your payment term?
Q: Where did u export this materials?
As one of the leading pvc waterproof membrane suppliers in China for over 15 years, we warmly welcome you to buy high-grade pvc waterproof membrane from our factory. All our products are with high quality and competitive price. Contact us for more details.
Polyester Reinforced TPO Roofing Sheet, polyethylene waterproofing membrane, pvc sheet waterproofing
