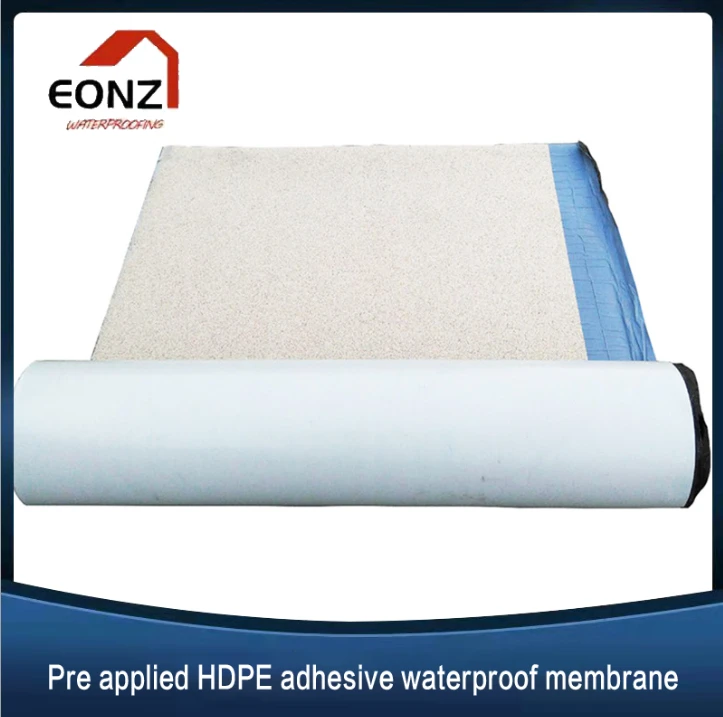

Hdpe Waterproofing

A geosynthetic material is HDPE membrane waterproofing, commonly known as HDPE geomembrane. Geosynthetic materials were first used in the 1950s. HDPE membrane is a plastic sheet roll formed of HDPE resin, which is a non-polar, highly crystalline thermoplastic material. The production processes include blow molding and extrusion, with the former being the more common.

Send Inquiry

Fast Delievery
Quality Assurance
24/7 Customer Service

Product Introduction

Product Description

HDPE Waterproofing is a high-density polyethylene material that is widely used as a waterproof membrane. It is known for its superior corrosion resistance, aging resistance, excellent waterproofing properties, good flexibility, and high tensile strength. It is extensively used in various projects in the fields of water resources, transportation, construction, and environmental protection.
The production process for this product is complex, and strict control of temperature, pressure, and speed during production is required to ensure the quality and performance of the product. It is therefore important to choose a reliable manufacturer of HDPE waterproofing products. Generally speaking, legitimate HDPE waterproofing manufacturers have well-developed quality control systems and testing equipment to ensure the stability and consistency of their products.

With the continual increase of environmental awareness and the tightening of environmental protection legislation, the market demand for HDPE waterproofing will grow. Relevant businesses will also continue to improve the quality and performance of their products in order to provide clients with higher-quality goods and services.
To summarize, HDPE waterproofing is a dependable and long-lasting solution for waterproofing demands in a variety of industries. Choosing a recognized manufacturer guarantees the highest quality and performance, making it a wise investment for any project.

Product Features

Acid and alkali resistance, salt water resistance, oxidation resistance, heat resistance, good flexibility, high impermeable performance, and high tensile strength are the major properties of HDPE impermeable film. It can effectively prevent soil and water penetration, pollutant leakage, and preserve the environment and the safety of water sources.

Specification

Length	HDPE Thickness	Membrane Thickness
1m/2m	0.8mm/1.0mm	1.2mm/1.5mm

Application Places

HDPE impermeable film has a wide range of applications. It can be used in landfills, chemical plants, sewage treatment plants, water conservancy projects, road construction and other occasions. For example, in landfills, HDPE impermeable film can play a role in isolating garbage and soil, preventing harmful substances from leaking out, and protecting the safety of soil and water sources; In water conservancy projects, HDPE impermeable film can play a role in impermeable water retention to ensure the supply of water sources and the safety of water quality.

Technical Data

No.	Test Item	Test Method	Result		Conclusion
1	Peel Strength	ASTM D903-98(2017)	0.201kgf/mm		Pass
2	Puncture Resistance	ASTM E154/E154M-08a(2013) Section 10	995N		Pass
3	Tear Strength	ASTM D624-00(2012)	Transverse	77.1kN/m	Pass
			Lengthways	77.6kN/m
4	Tensile Strength	ASTM D882-12	Transverse	24.5Mpa	Pass
			Lengthways	24.8Mpa
	Elongation at break		Transverse	935%	Pass
			Lengthways	930%
5	Tensile Strength	ASTM D412-16 Method A	Transverse	25.6Mpa	Pass
			Lengthways	26.2Mpa
	Elongation at break		Transverse	860%
			Lengthways	800%
6	T-Peel Strength	With reference to ASTM D1876-08(2015) and client's requirement	0.541 N/mm		Pass
7	Water Absorption	ASTM D570-98(2010)	0.29%		Pass
8	Low Temperature Flexibility	ASTM D1790/D1790M-15 Section 7.6	No affection		Pass
