Sound Insulation Panel

Rock Mineral Wool Ceiling Panel is the ultimate solution for your acoustic needs. Made from the finest materials, this product is designed to offer superior sound insulation and acoustic performance. Its mineral fiber composition and textured surface enhance its acoustic properties, making it perfect for use in buildings, offices, schools, hospitals and other spaces where noise control is essential.

Our Rock Mineral Wool Ceiling Panels are available in a variety of sizes and colors, so you can easily choose the right fit for your needs. They come in a range of designs, from classic to contemporary, ensuring that they complement every setting. The panels are easy to install and maintain, which saves valuable time and cost in the long run.

Rock Mineral Wool Ceiling Panel is durable and long-lasting, thanks to its inherent fire-resistance and moisture-repelling properties. It maintains its shape and performance even when exposed to high levels of humidity, ensuring your space remains comfortable and noise-free.

Apart from its acoustic benefits, Rock Mineral Wool Ceiling Panel is also an excellent choice for energy efficiency. Its thermal insulation properties keep your space cool in summer and warm in winter, reducing your energy consumption and costs.

With its exceptional acoustic performance, durability, and energy-saving capabilities, Rock Mineral Wool Ceiling Panel is the perfect solution for all your sound insulation needs. Whether you're building a new space or refurbishing an existing one, our panels are an excellent investment for your acoustic, aesthetic and practical requirements.

Choose Rock Mineral Wool Ceiling Panel, and let us help you create a peaceful and comfortable environment!



Where to use

Widely used in hotels, restaurants, gymnasiums, office buildings, shopping malls, studios, computer rooms, airports, station, factories, hospitals and home decoration. etc.



Specification

Thickness of mineral fiber ceiling board, acoustic Mineral Fiber Board:

available from 6.5mm to 20mm

600*600*12mm (low density kind, 1.25--1.30 kgs/pc)

600*600*14mm (low density kind, 1.40--1.50 kgs/pc)

600*600*15mm (low density kind, 1.50--1.55 kgs/pc)

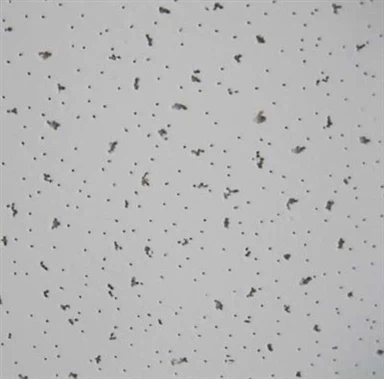

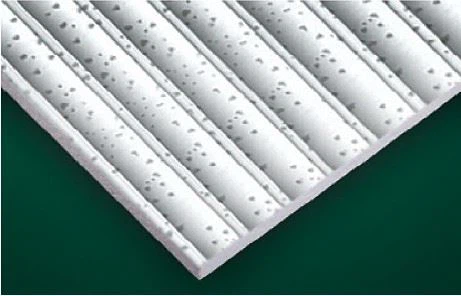

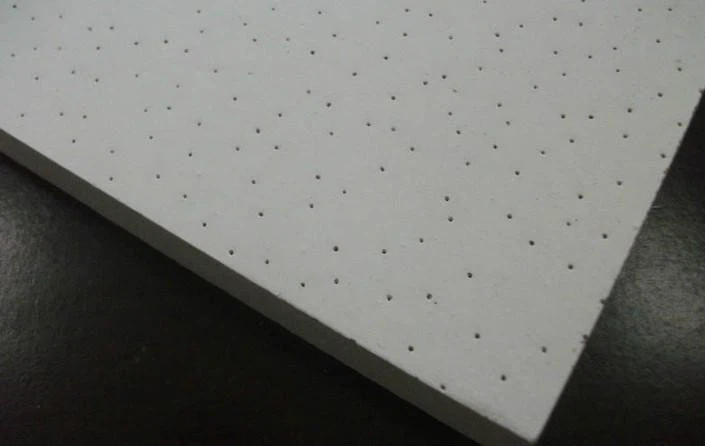

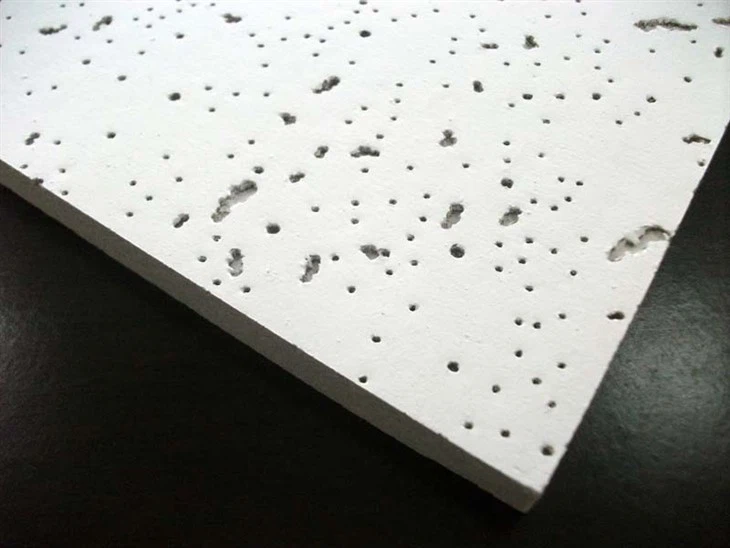

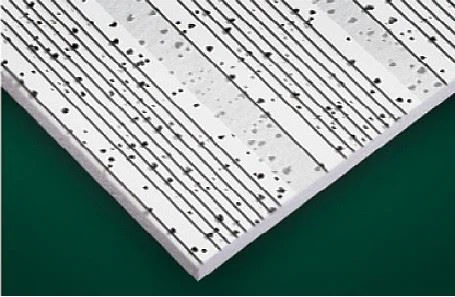

Patterns of mineral fiber ceiling board, acoustic Mineral Fiber Board:

♦ little-stars series flowers

♦ Lovely-worms series flowers

♦ Convex-sprinkling series

♦ Different shape boards

Dimensions, panel thickness:

Standard sizes of mineral fiber board:

300*300mm, 300*600mm, 300*1200mm, 600*600mm, 600*1200mm

British system is 603*603mm, metric system is 595*595mm

Edge design of mineral fiber ceiling board, acoustic Mineral Fiber Board:

adhesive and nails, square, tegular, narrow reveal, concealed, shiplap, liner shiplap.



Design



Technical Data

Material	wet-method composite mineral fiber
Surface coating	good vinyl latex paint
Color	white(other colors avaliable)
Superficial decorative pattern	optional
Density	330-430kg/m3
Processing of rim angle	no fluting(for open frame), four rims cutting and fluting in the center.
Sound absorption coefficent	0.45-0.65
Fireproofing property	Qualified(Grade B1, GB8625-88)
	Qualified(Grade A, GB5464-85)
Anti-sinking property	≤3.5mm(JC670-1997)
Coefficient of heat condition	0.065W/m.k
Anti-bending strength	≥255N

Lead time: In 15 days after receiving deposit / original L/C received.



Features of mineral fiber board:

Nice-looking, sound absorption, fire-resistant, heat-insulation, environmental protection,green building materials.

Main Material: a high-grade construction material with mineral wool.

Surface: a variety of surface patterns available.

Color of Surface: Common White.

Edge: Square, tegular, concealed and overlap.

Density: 280-320kg/m3 / 350 - 420kg/m3.

NRC:0.55,0.6, CAC:35,40

RH:80, 85, 90, 95



We offer customized packaging and labeling options to meet your specific needs.

Our False Ceiling Tiles are eco-friendly and sustainable. They are made of recycled materials, so you can enjoy beautiful and functional ceilings while contributing to the preservation of the environment. Our tiles are also fire-resistant, complying with the industry standards and ensuring the safety of your building and its occupants.
In conclusion, our False Ceiling Tiles offer countless advantages. They are flexible, functional, easy to install, eco-friendly, and durable. They also come in an array of colors and designs, making them a perfect fit for your home or office, and a perfect complement to your style. Get in touch with us today to order your False Ceiling Tiles and let us help you transform your ceiling into a beautiful and functional space.

It is the sophistication and stability  that will ensure the long-term growth and prosperity of our business.

As a supplier and manufacturer, we offer competitive pricing for our products.

We firmly believe that neglecting the cultivation of market quality is the biggest waste of resources, which is to neglect the cultivation of the company's development power.
